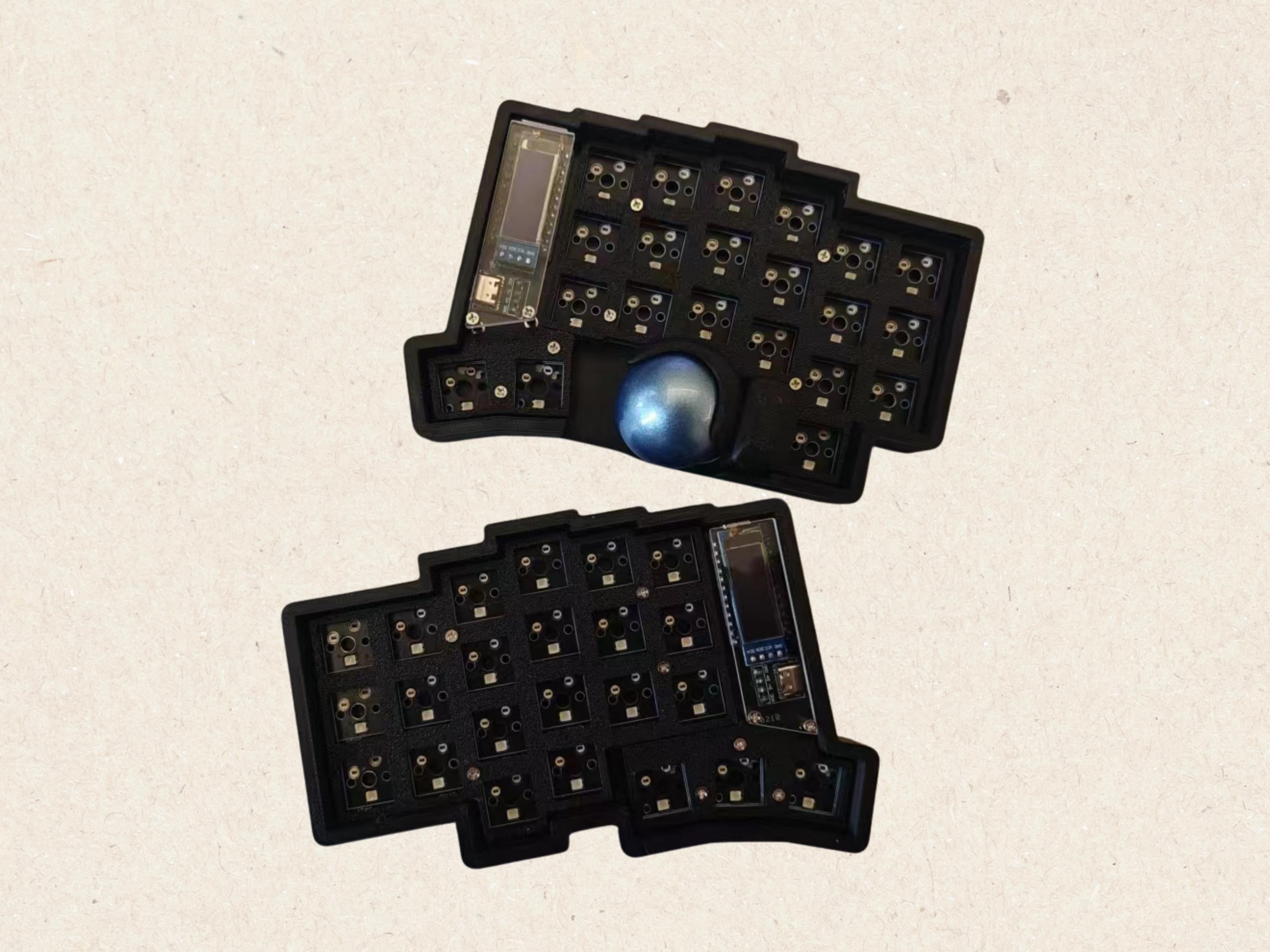

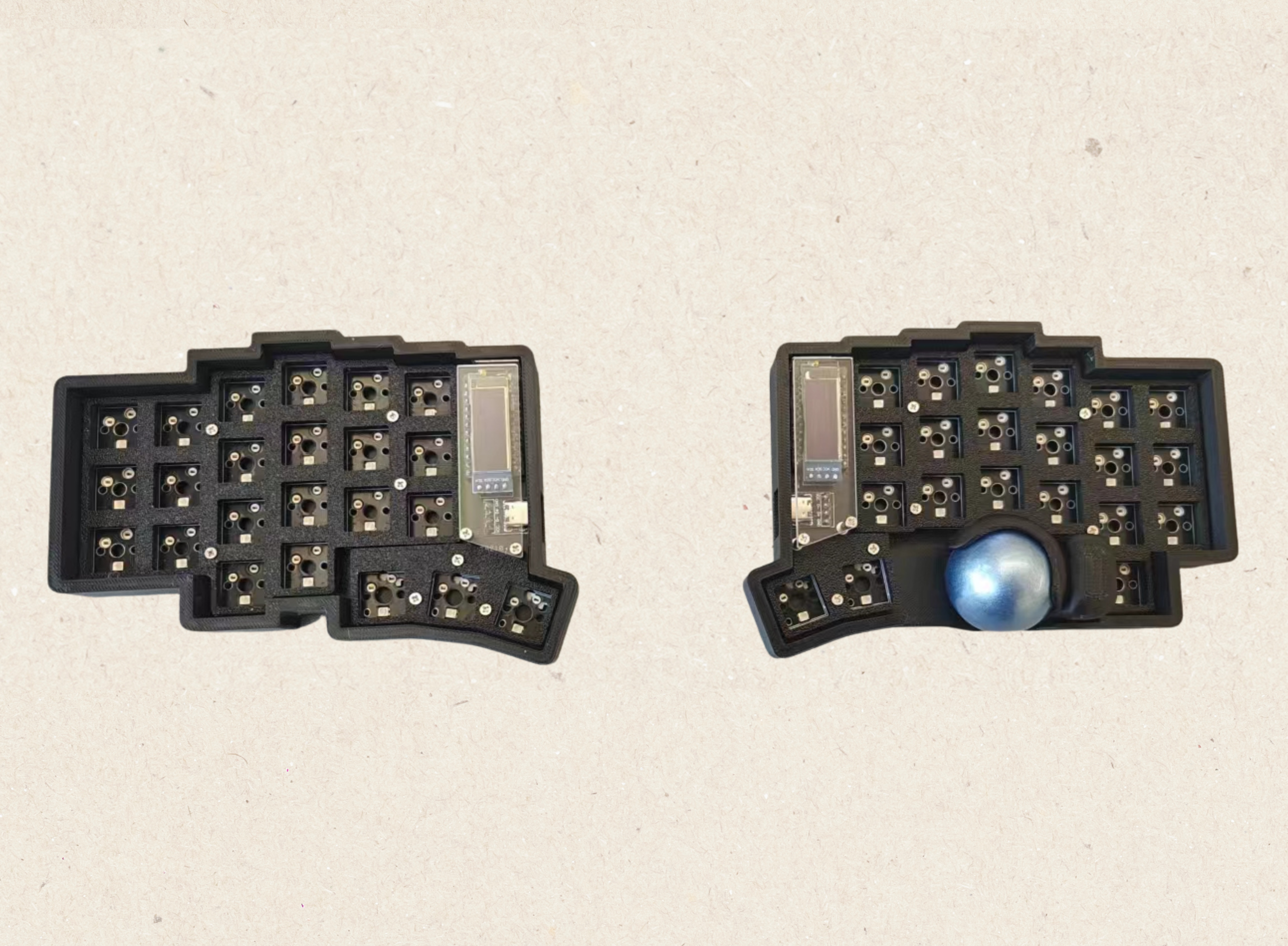

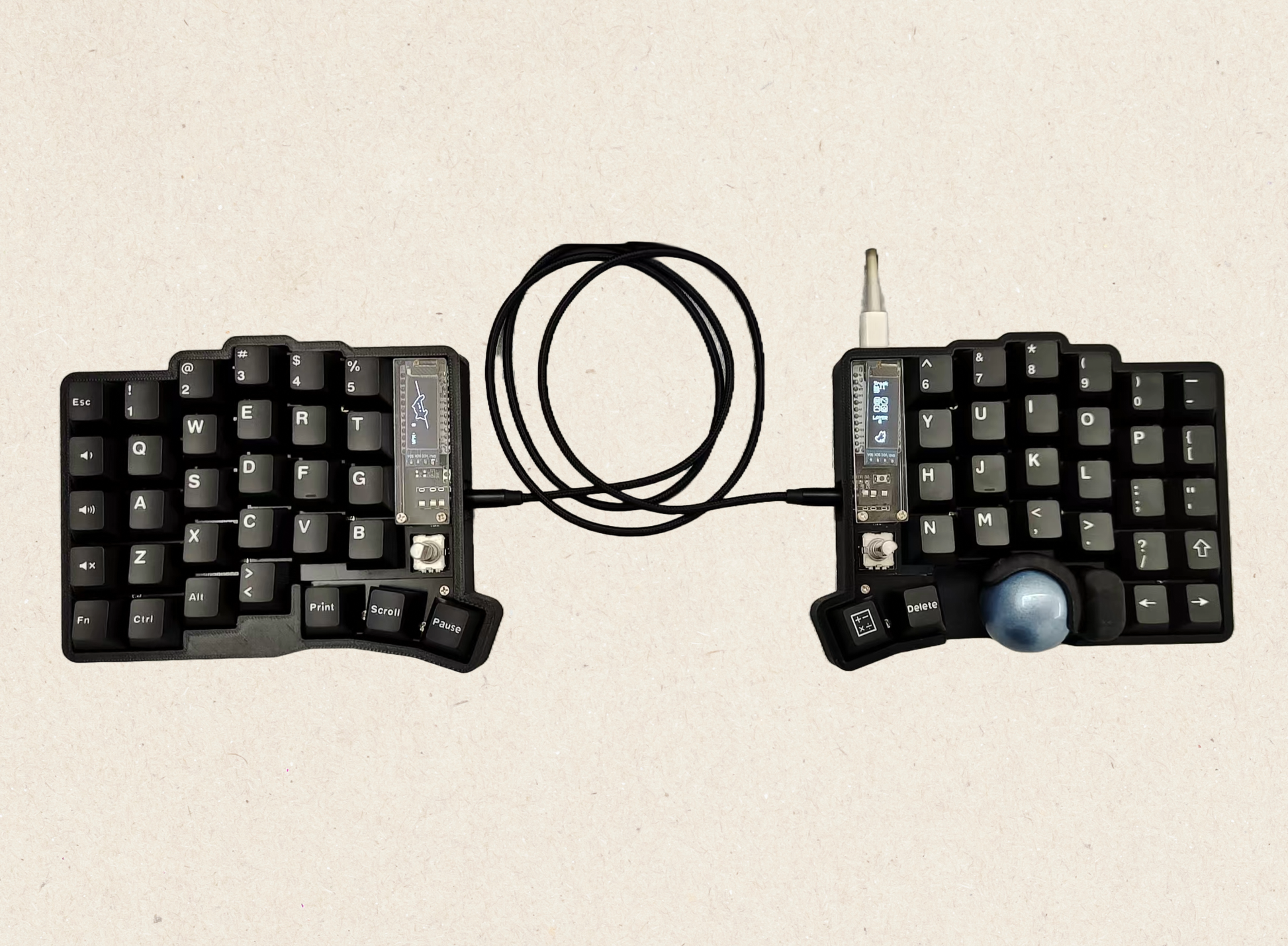

Trackball Wired Spilt Keyboard

[Hot-swap/WLED] PCB hot-swap

[RGB] RGB available

[Key replacement] Vial

[Switch] The thumb area supports Choc V1/ V2 /mx switches (need to be confirmed when placing an order, not compatible with both), the main key area only supports mx switches

[Packing list] Trackball split keyboard set *1; foot pad *1 (switches and keycaps not included)

[Feature]: Compared to Keyball, this circuit board has been redrawn to allow left and right keyboards to use CTC connection. It supports hot-swap connection to avoid the problem of TRS connection breaking the connection io; *Compared with Keyball's via and remap key change, this upgraded version supports Vial key change, which allows more flexibility with qmk setting. Please message to specify your preferred color from last image. Otherwise, defaulted standard color from the color dropdown would be selected. Here is more details: ✅The data cable connected to the computer should be plugged into the right side with the trackball ✅ V2 version we are offering here uses CTC data cable connection, which supports plugging and unplugging the middle cable with power on and solves the problem of v1 version; pcb has now been upgraded to v2 version. V1 version TRS audio cable connection: when plugging in or out the middle cable, you need to unplug the data cable connected to the computer first. Whether plugging in or unplugging, you must do so when the data cable is not connected to the computer, because plugging and unplugging with power on will damage the main control, causing half of the keyboard to be broken. ✅ The color of the circuit board is now unified as black, and no customized circuit board color is not accepted ✅ Key / trackball specifications: The Trackball series is a wired split keyboard. Currently, this series has four different layouts, namely 39/44/47/59, all of which are hot-swappable kits without switches and keycaps. The Trackball series only supports mx switches in the main key area, and the thumb area supports mx switches or Kailh choc v1/v2 switches (Kailh choc model v1:1350, v2:1353). The thumb zone type needs to be specified when placing an order. You can't use mx and choc at the same time. It cannot be changed later. 39/44/47 are full-button versions without a rotary encoder. The dual trackball part of the 59 arrangement can be freely selected and becomes four arrangements: (need to be specified when placing an order, and cannot be changed later) 🌀59: dual rotary encoders 🌀60: left rotary encoders and right button (right rotary encoders replaced with button) 🌀60: left button and right rotary encoders (left rotary encoders replaced with button) 🌀61: full buttons (both rotary encoders replaced with buttons) 🧠The trackball is ec11, which supports both left rotation and right rotation as well as click. The functions of left rotation, right rotation and click can be defined separately. There is no pre-defined function. You can adjust the volume or turn the pages. You can even simply treat them as three buttons. To avoid any confusion with the trackball functions, you can buy the 61 full-button version. 🧠 With QMK firmware compatible with VIAL, it supports more settings than VIA and remap. The functions of QMK firmware can be brought into full play. 🧠 The main control uses rp2040, supports rgb matrix lighting, supports 10 layers, all buttons support rgb lighting with no bottom light - rgb is the lower light position (if you don’t understand what the lower light position means, don’t worry about it, this is for those who understand it as some people don’t like the upper light position) 🧠 OLED screen with Luna (a QMK keyboard pet) on the left hand side; different actions will follow different keys. Current layer will be displayed as well as triggered modifier key in current layer; the right hand Bongo Cat will change shape based on the typing speed, and the right screen supports switching to the trackball parameter page through the Tinfo button to view the current trackball parameter settings 🧠 The trackball supports mouse mode (moving like a normal mouse), sniper mode (moving at a lower dpi), and scrolling mode (equivalent to the middle wheel of a normal mouse, supporting horizontal and vertical scrolling) 🧠 Supports Automatic Mouse Layer (automatic layer cutting): The duration of staying in the mouse layer after layer cutting can be adjusted by yourself; and trackball triggers Automatic Mouse Layer: The scrolling threshold of the layer can also be adjusted. 🧠 Added the Tinfo key value: Pressing this key can allow you to switch to the specific data of the trackball settings on the right OLED screen.

[Battery] No battery
